Optical Cable Specification Code Table
Optical cables are classified and color-coded according to the TIA/EIA-598-D standard, which defines outer jacket colors, inner fiber sequences, and connector/boot colors for reliable identification.
Fiber Cable Classification
Outer Jacket Color (Fiber Type Identification): The outer jacket color quickly indicates the fiber type and mode:
- Orange – OM1/OM2 Multimode
- Aqua – OM3/OM4 Multimode
- Emerald Green – OM5 Multimode
- Yellow – OS2 Single-mode
- Other colors – Custom or hybrid cables with printed legends for fiber type
Inner Fiber Color Sequence
Each fiber within a multi-fiber cable is color-coded using a 12-color sequence. For cables with more than 12 fibers, the sequence repeats with added stripes or markers:
- Blue
- Orange
- Green
- Brown
- Slate (Gray)
- White
- Red
- Black
- Yellow
- Violet
- Rose (Pink)
- Aqua For high-count cables (>12 fibers), the Tube and Fiber system is used: the 12-color sequence is applied to the buffer tube, and then repeated for fibers inside the tube. For example, Fiber #34 would be the 10th fiber (Violet) in the 3rd tube (Green) of a 48-fiber cable .
Connector and Boot Color Coding
Connector boots indicate fiber mode and polish type:

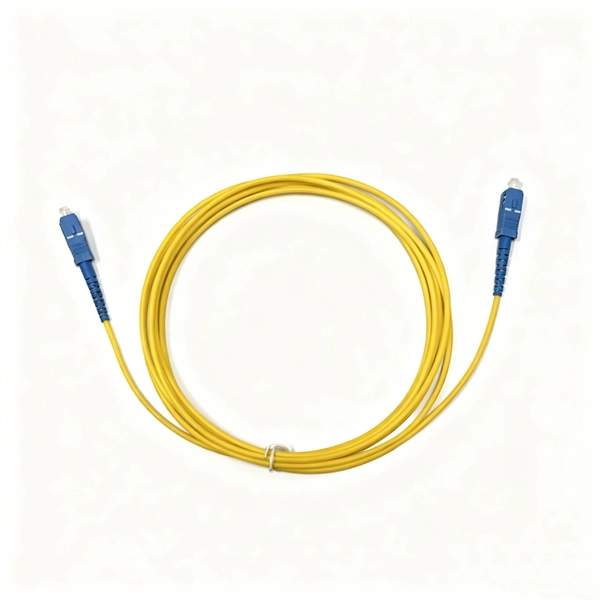

- UPC (Ultra Physical Contact) Single-mode – Blue boot

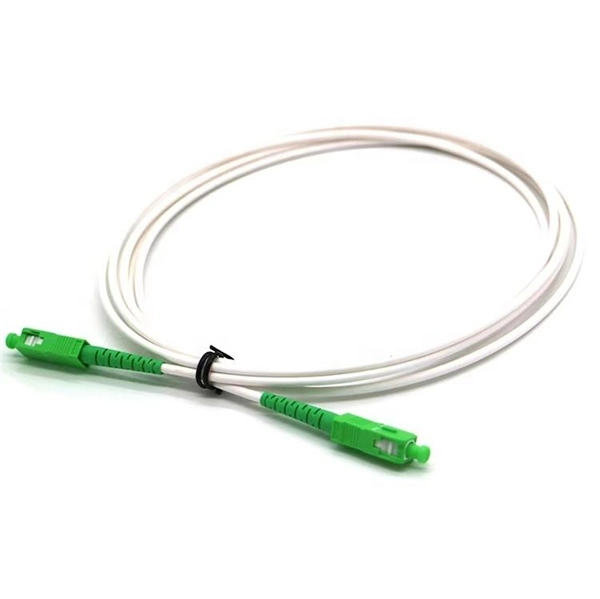

- APC (Angled Physical Contact) Single-mode – Green boot
- Multimode (OM1/OM2) – Beige boot
- Multimode (OM3/OM4/OM5) – Aqua boot This ensures proper matching and reduces back reflection or insertion loss during installation .
Summary Table
| Component | Color / Code | Purpose |
|---|---|---|
| Outer Jacket | Yellow, Orange, Aqua, Emerald Green | Fiber type/mode identification |
| Inner Fiber | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua | Individual fiber identification in sequence |
| Connector Boot | Blue, Green, Beige, Aqua | Fiber mode and polish type (UPC/APC) |
| High-count Cables | Repeating 12-color sequence with stripes | Unique identification of fibers in multi-tube cables |
Notes
- Hybrid cables with multiple fiber types require printed legends on the jacket.
- Custom jacket colors are allowed if agreed upon by manufacturer and user.
- Following TIA/EIA-598-D ensures global consistency, faster installation, simplified maintenance, and reduced errors in high-density networks . This classification and coding system is essential for data centers, FTTH deployments, and backbone networks, enabling technicians to quickly identify, trace, and manage fibers efficiently.
